21316 EK/C3

21316 EK/C3

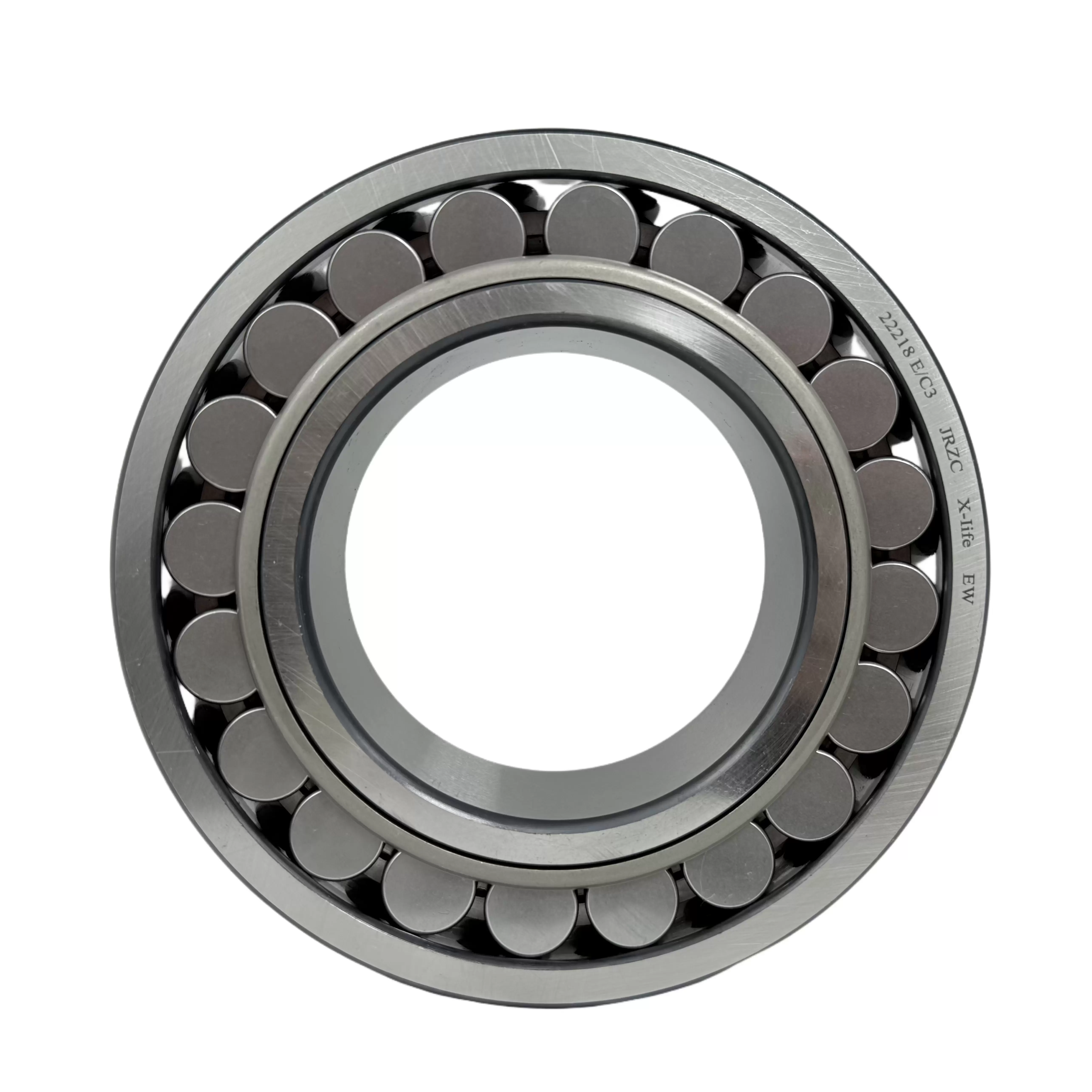

Spherical roller bearings are designed to support substantial radial and axial loads simultaneously, with a self-aligning capability that compensates for shaft misalignment and deflection with minimal friction or heat generation. Their robust construction ensures excellent performance even in equipment subject to vibration, while features for convenient relubrication and compatibility with modular components such as housings, sleeves, and nuts make them versatile for a wide range of applications. These bearings offer high load-carrying capacity, low friction, long service life, and increased wear resistance.


Display in:
  • Dimensions
    Bore diameter80 mm
    Outside diameter170 mm
    Width39 mm
    Performance
    Basic dynamic load rating331 kN
    Basic static load rating375 kN
    Grease Reference speed
    1140 r/min
    Oil Limiting speed
    1590 r/min
  • Properties
    Bore typeTapered 1:12
    For Load DirectionRadial
    Number of rowsDouble row
    Radial internal clearanceC3
    Tolerance class for dimensionsNomal
    Tolerance class for run-outP6
    Seal typeWithout
    LubricantNone
    Relubrication featureWithout
  • Weight and Material
    Product net weight4.46 kg
    Roller materialChrome steel
    Ring MaterialChrome steel
    CageStamped steel
