22330 CCJA/W33VA405
22330 CCJA/W33VA405

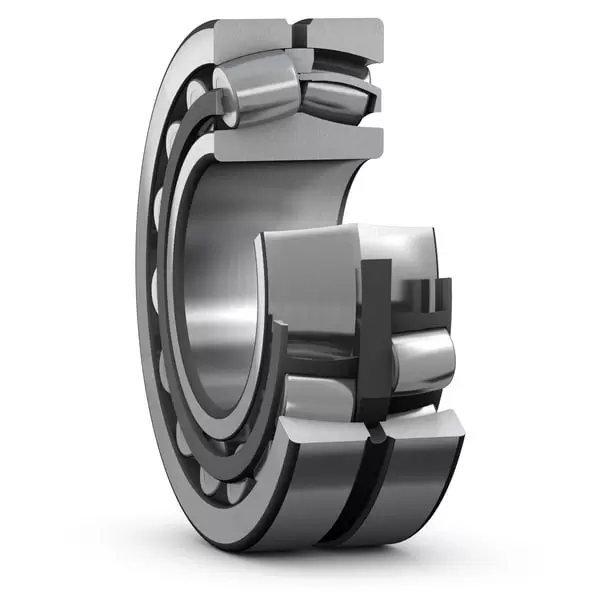

Spherical roller bearings are designed to handle heavy loads in both axial and radial directions. They are self-aligning, allowing them to compensate for shaft deflection and misalignment with minimal impact on friction or operating temperature. This design ensures reliable performance in various types of vibrating equipment. Additionally, these bearings feature construction elements that make relubrication easy. They can also be integrated into modular systems with compatible housings, adapter sleeves, and lock nuts.
Display in:
- Dimensions
Bore diameter 150 mm Outside diameter 320 mm Width 108 mm PerformanceBasic dynamic load rating 1539 kN Basic static load rating 1760 kN Grease Reference speed 800 r/min Oil Limiting speed 1000 r/min - Properties
Bore type Cylindrical For Load Direction Radial Number of rows Double row Radial internal clearance C4 Tolerance class for dimensions Nomal Tolerance class for run-out P6 Seal type Without Lubricant None Relubrication feature Without - Weight and Material
Product net weight 41.8 kg Roller material Chrome steel Ring Material Chrome steel Cage Stamped steel
