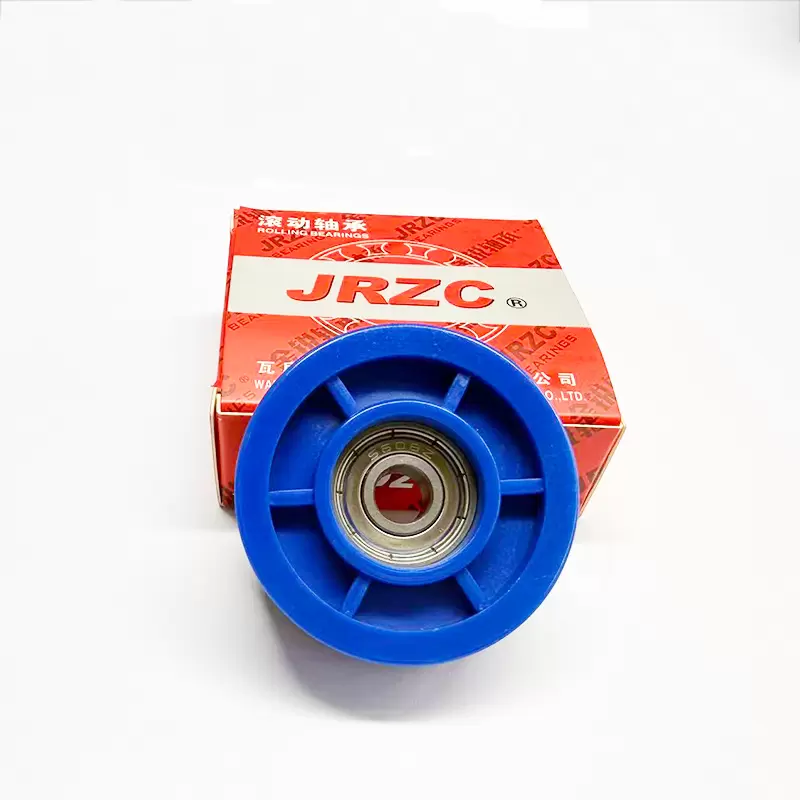

Solve Your Application Challenges with JRZC Rubber-Coated Bearings

Looking for a bearing that offers more than smooth rotation? JRZC rubber-coated bearings can help address several common challenges in industrial applications.

Reduce Noise and Impact – The rubber coating can cushion contact between the bearing and surrounding surfaces, helping reduce impact noise and vibration.

Improve Grip and Contact Performance – The rubber outer layer can provide better traction and help reduce slipping in suitable roller and guide-wheel applications.

Protect Contact Surfaces – The coating can help reduce direct metal-to-metal contact, minimizing scratches and surface damage in appropriate applications.

Meet Customized Design Requirements – Different equipment may require specific rubber hardness, coating thicknesses, colors, or dimensions. JRZC can work with customers to develop suitable customized solutions.

Improve Equipment Adaptability – By combining a standard bearing structure with a customized outer coating, JRZC helps customers adapt bearing products to their specific operating conditions.

Have a special application? Contact JRZC to discuss your requirements for rubber-coated bearings.

FAQ – JRZC 608Z Rubber-Coated Bearing

1. What is a 608Z rubber-coated bearing?

A 608Z rubber-coated bearing is a deep groove ball bearing with a metal shield on one side and a rubber coating applied to its outer surface. It combines smooth rotation with additional surface grip and cushioning for suitable applications.

2. What are the standard dimensions of a 608Z bearing?

The standard dimensions of a 608Z bearing are:

• Bore Diameter (d): 8 mm

• Outer Diameter (D): 22 mm

• Width (B): 7 mm

Please note that the finished outer diameter and overall dimensions of the rubber-coated version may vary depending on the coating design.

3. What are the advantages of JRZC rubber-coated bearings?

JRZC rubber-coated bearings can offer several advantages, including improved surface grip, cushioning against contact impacts, reduced contact noise in suitable applications, and flexible customization options.

4. What problems can rubber-coated bearings help solve?

They can help address slipping, contact noise, surface scratching, and impact between contacting components. Actual results depend on the rubber material, bearing design, installation, and operating conditions.

5. Where are 608Z rubber-coated bearings commonly used?

They may be used in guide rollers, conveyor systems, sliding mechanisms, small wheels, office equipment, fitness equipment, and other applications requiring compact bearings with a coated outer surface.

6. Can JRZC customize the rubber material and coating?

Yes. JRZC can discuss customization options such as rubber material, hardness, coating thickness, color, and finished dimensions, subject to technical feasibility and order requirements.

7. What rubber materials are available?

Material options may include NBR, EPDM, silicone rubber, polyurethane (PU), or other suitable elastomers, depending on the application. Selection should consider temperature, wear resistance, oil exposure, load, and required grip.

8. Is the 608Z rubber-coated bearing waterproof?

Not necessarily. The Z designation indicates a metal shield on one side of the bearing; it does not mean the bearing is waterproof. The rubber outer coating is also not automatically a sealing structure. For water-resistant applications, a suitable sealing design should be confirmed separately.

9. Can JRZC provide OEM and ODM services?

Yes. JRZC supports OEM/ODM cooperation and can discuss customized dimensions, rubber coating specifications, product branding, and packaging according to customer requirements.

10. How can I get a quotation for 608Z rubber-coated bearings?

Please send JRZC your required quantity, application, rubber material or hardness requirements, finished dimensions, and packaging preferences. If available, drawings or product samples can help us evaluate your requirements and provide a suitable quotation.
